Description
The extreme format flexibility due to integration of latest servo technology makes this machine completely unique on the market.
Blocks and plates of fats can be produced on only one machine.

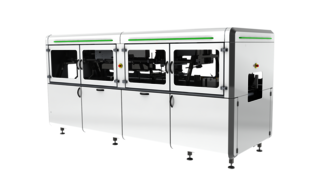

Fully automatic packaging machine for butter, margarine and other edible fats, as well as other comparable products of various sizes for further industrial processing. Versatility in application in spite of little required space characterizes the system type BFW 15.
It is suited for user who wish for variable formats in packaging blocks or plates of edible fats, yet lack available space.
This machine is optimized in design and function to meet the highest standards of packaging, flexibility and reliability.
The infeed of the product is realized in a hygienically closed system directly from one of our resting tubes in a continuous flow.
The process velocity is synchronized with the flow of product automatically.
Wrapping material is automatically fed from the paper reel and cut true to dimension.

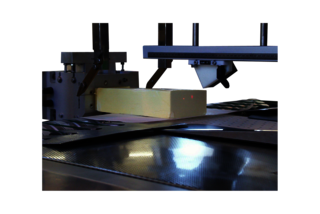

Highly weight accurate cutting of the product in the flow by our "flying cutter", controlled by a laser measuring system.

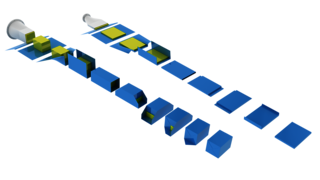

In the further passage through the machine the wrapper is then folded around the product.
- range of sizeblocks 2kg to 15kg
plates 1kg to 5 kg - maximum performance8 t/hour (on 15 kg blocks)
- packaging materialmin. 50 g/m²
- energy consumption15 kW in total
- weight of machine2.8 t
- handlingline supervision (1 person)
- blocks, bars and plates on one machine
- intuitive operation via colour touch screen
- excellent accessibility to all areas
- hygienically encapsulated packaging areas
- worldwide remote assistance via internet
- well established technical concept - Made in Germany
… and everything that goes with it
- resting tubes in various formats
- resting tube heating system
- sieve and hole discs
- check weigher
- metal detector
