Description
Fully automatic cartonizer for blocks and plates, especially developed for the gentle packaging of food fats. Carton weights of up to 25 kg, achieved by combining packages with an individual weight between 1 kg and 25 kg.
The product and carton transport is realized via servo-controlled linear actuators, which are complemented by proven conventional drive systems. The robust system is characterized by maximum flexibility. The adjustment motors allow a rapid, fully automatic switch over to other formats, ensuring shortest changeover times. This also includes parameters of sensors, glue position and the different speeds that are stored format-dependent.
Fully automatic cartonizer for blocks and plates, especially developed for the gentle packaging of food fats. Carton weights of up to 25 kg, achieved by combining packages with an individual weight between 1 kg and 25 kg.

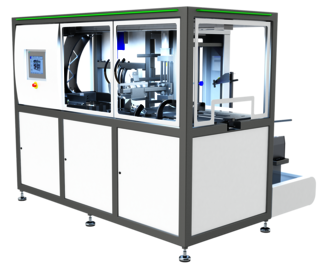

Especially wrapped products with flaps reacting sensitive to any contact are properly assembled and cartonized with maximum precision. The stainless steel design of the BWA 25-V ensures highest hygienic standards for the application in food industry.

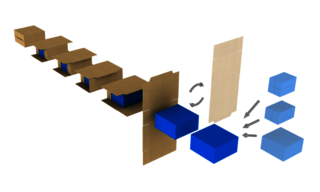

The product is supplied via the infeed conveyor of the cartonizer and placed onto a platform for accumulation followed by the stacking from bottom up. The full stack is pushed horizontally into the upright standing carton blank which is then folded around it. Hot melt glue is economically applied at the exact position, followed by the closure of the side flaps giving the box its stable shape. The finished carton box leaves the machine in line with the inlet. If needed the machine can be equipped with a turning station.
- supported carton box weights8 kg - 25 kg
- weights of packages1 kg - 25 kg
- carton sealinghot melt
- energy consumption7 kW in total
- weight of machine2.4 t
- handlingline supervision (1 person)
- robust and compact design
- intuitive operation via colour touch screen
- fully automatic format change
- very small footprint
- huge carton hopper
- clear and well arranged working area
- maintenance-free machine concept
- ,Beluga Clean-Line‘ for function and design
- ,Mood-Line’ with enhanced optical status signal
- world wide teleservice via internet
- well established technical concept - Made in Germany
… and everything that goes with it
- control scale for carton content
- ,Cartonless’ stacking of packages without cardboard
- carton turning station
- various transport systems
