Description

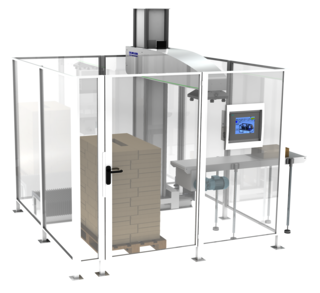

Fully automatic palletizer, specially designed for the clean palletizing of packages.
Although this machine was originally designed as the end-of-line solution for our wrapping plants, this 4-axis palletizer can also be used for a wide range of different palletizing applications. Reliability and fault-free operation are the criteria by which this palletizer is designed and built.
Fully automatic palletizer, specially designed for the clean palletizing of packages with a weight between 1 kg and 25 kg.
The carton boxes are supplied to the pickup station of the palletizer via a controlled conveyor. The box is then detected by sensors and the palletizer positions its beam in order to pick up the box precisely utilizing its pick up system. Depending on the application the pick up system is equipped with suctions cups, mechanical handling systems or a combination of both.
- range of carton-box weight1 kg –25 kg
- pallet sizesEuro-pallets or other sizes up to 1.5m x 1.5m
- pick up systemvaccum, mechanic or a combination of both
- energy consumption4 kW in total
- weight of machine700 kg
- handlingline supervision (1 person)
- robust and compact design
- intuitive operation via colour touch screen
- fully automatic format change
- very small footprint
- integrated packing scheme generator (also available for PC)
- ‚Beluga Clean-Line‘ for function and design
- ,Mood-Line’ with enhanced optical status signal
- world wide teleservice via internet
- well established technical concept - Made in Germany
… and everything that goes with it
- empty pallet storage and dispenser system
- cardboard layer dispenser
- customized pick up systems
- fully automatic pallet transport system
- additional palletizing stations
- various transport systems
