Description

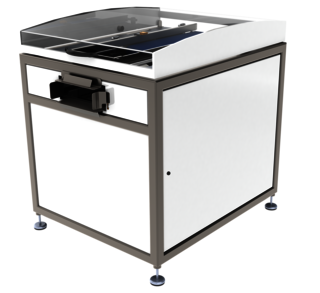

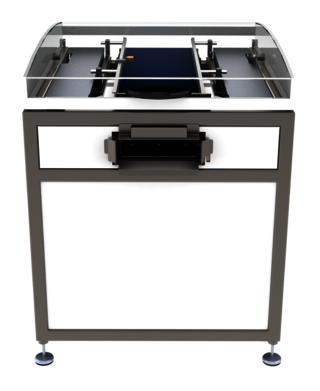

Our semi-automatic carton packer is the perfect choice for smaller-scale production processes where a fully automatic version would not be operating at full capacity.
Servo-controlled linear actuators provide maximum flexibility for the realization of different stacking schemes and reduce the effort for the format change to almost a push of a single button. Reliability and fault-free operation are the criteria by which this cartonizer is designed and build. This is also reflected in the used control system of the latest generation.
Semi-automatic cartonizer for blocks and plates, especially developed for the gentle collecting and stacking of very soft products such as margarine or butter.
With its stainless steel design the CPB 10 meets the highest hygienic demands in the food industry.

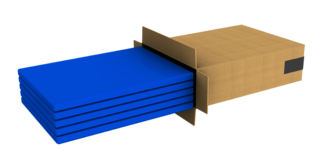

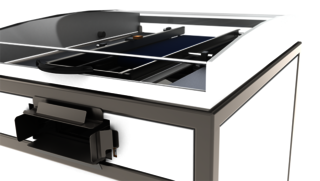

The product is fed in by a conveyor belt and placed onto a platform for accumulation and stacking. As soon as the accumulation of the entire box content is complete and the operator pushes an empty pre-erected carton box onto the outlet of the CPB 10, a pusher moves the products into the carton box. The box is then forwarded to a standard taping machine by the operator. This guarantees a closed and hygienic process.
- supported carton box weights4 kg – 12.5 kg
- weights of packages250 g - 12.5 kg
- carton typeRSC, HSC or similar
- maximum performance40 packages/min
- energy consumption2 kW in total
- handling1 operator
clear advantages ...
- robust and compact design
- very small footprint
- smooth and hygienic handling of the product
- clear and well arranged working area
- ultrasonic height detection
- manufactured from stainless steel
- ideally suited as collector for hand-palletizing
- well established technical concept - Made in Germany
… and everything that goes with it
- merging and distributing systems
- downstream carton closer (taper)
- various transport systems
