Description

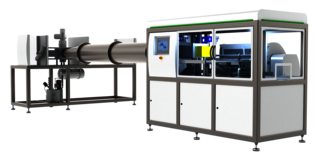

The bestseller among our equipment for packaging bars and blocks, the DKS 3000, is a fully automatic machine for professional use. In combination with the CHR. BOCK & SOHN developed volumetrically controlled double piston system DKD, the DKS 3000 achieves an optimum packaging quality and presentation of your product. Our plants are equipped with the latest touch screen technology and a touch screen optimized control system.
The DKS 3000 is a fully automatic packaging machine for margarine, butter and other edible fats as well as similar products of various consistencies and sizes in blocks and bars. The design and function of this block packaging machine is tailored to meet the highest degree of packaging quality and capacity.
The infeed of the product is realized in a hygienically closed system by our volumetrically controlled double piston dosing unit. Through processing of the product in idleness, real resting phases are realized, guaranteeing a high plasticity unreached by continuous running systems. The packaging material is automatically fed from the paper reel, cut to exact dimension and then positioned accurately, ensuring continuous high packaging quality. Furthermore the centering of blocks and folding of the side flaps with a diagonal movement of the folding units make the processing of particularly soft product possible. And finally the synchronization of operation sequences by rotary cams ensures the flow of production on the highest level of quality.
- range of size1 kg – 25 kg
- maximum performance13 t/hour
- packaging materialmin. 30 g/m²
- energy consumption8.5 kW in total
- weight of machine3.5 t
- handlingline supervision (1 person)
- robust and compact design
- intuitive operation via colour touch screen
- high output with highest weight precision

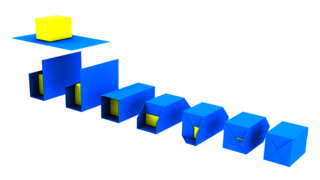

- block-optimized paper sheet and folding scheme
- hygienically encapsulated packaging area
- sectional tempering for extrusion unit
- meets highest hygienic standards
- ‚Beluga Clean-Line‘ for function and design
- ,Mood-Line’ with enhanced optical status signal
- world wide teleservice via internet
- well established technical concept - Made in Germany
… and everything that goes with it
- block-precutting unit
- paper-turning station
- CIP-cleaning system
- resting tubes in various formats
- resting tube heating system
- sieve and hole plates
- check weigher
